Qsep400 DNA Fragment Analyzer
제품 소개
Qsep 시스템은 agarose 전기영동 없이도, 값 비싼 chip이나 형광 dye를 사용하는 genetic analyzer 없이도 2~7분 안에 DNA 사이즈분석이 가능한 자동전기영동장치입니다.
Polyacrylamide gel, 형광물질 (EtBr), 그리고 캐필러리 컬럼이 내장되어 있는 펜 타입의 카트리지를 사용하기 때문에 분석 전 별도의 준비가 필요 없이 빠르고 간편하게 DNA 절편을 분석할 수 있습니다.
사용자는 샘플과 카트리지를 장착하는 것으로 간단히 준비를 완료하고 데이터를 기다리기만 하기 때문에 시간을 절약할 수 있습니다.
또한 gel analysis와는 비교할 수 없는 해상도를 제공하기 때문에 민감하고 정확한 분석이 가능하고, 데이터는 signal peak와 band image가 함께 얻어지기 때문에 고분리능, 고감도로 정성과 정량 분석을 모두 수행할 수 있습니다.
Qsep400의 경우 기존의 Qsep1/Qsep100이 1개 channel로 sample을 detection한 것과 달리 4개 channel로 sample을 detection하기 때문에 running time을 획기적으로 줄일 수 있습니다.
제품 특징
• 안전하고 간편한 ready-to-use gel 캐필러리 컬럼 사용 (최대 100 – 300회 사용 / 타입에 따라 다름)
• 카트리지에 RFID가 부착되어 있어, 기기에 삽입하면 잔여사용횟수/유효기간을 확인할 수 있음
• RNA Quality Number (RQN)을 제공하여 RNA integrity를 확인할 수 있음
• 2-7분 내에 샘플 분석가능
• 1~4bp 구분 가능한 고 해상도 (100 – 500bp)
• 저렴한 running cost
• 2pg/µl의 농도도 분석 가능한 고감도
• 원하는 샘플만을 선택하여 분석 가능한 Cherry picking System

Cherry-Picking
1번에 1개의 샘플을 picking하는 방식이기 때문에 원하는 샘플을 선택적으로 분석할 수 있습니다. (96-well plate)

다양한 applications
DNA/RNA QC, Cell-free DNA Detection, NGS Fragmentation/Library QC, RFLP, STR, GMO Test, oligonucleotide 분석등 다양한 활용이 가능합니다.

Data View
Gel view (Band)와 Electropherogram (Peak) 이미지를 동시에 얻을 수 있으며, 소프트웨어를 통해 정량적 분석이 가능합니다.

Wireless Operation
Qsep1 기기 내부에 Wi-fi가 내장되어 있어, 스마트폰 App을 이용하여 기기를 구동 및 분석을 수행할 수 있어 편리합니다.

Figure1. Comparison between CE and slab-Gel 26 and 34bps fragments are detected only on CE (purple box). 238 and 242bps are not distinguished on Slab gel. On the other hand, these fragments is resolved clearly on CE (red box)

Figure 2. RNA Quality Check. Qsep provides RQN (RNA Quality Number) to enable check the extracted RNA’s integrity.
제품사양
Qsep1 | Qsep100 | Qsep400 | |
System Type | 1 Channel Portable System | 1 Channel Standard System | 4-Channel System |
Automated Sampling | 1~8 samples | 1~96 samples | 1~96 samples |
Disposable Gel-Cartridge* | Single Channel: S1, S2, N1,R1 | Single Channel: S1, S2, N1,R1 | Four-Channel: S1, S2, F3, N1,R1 |
Rapid Analysis | 2~7 min/sample | 2~7 min/sample | 2~7 min/4 samples |
Resolution | 1~4bp (Between 100~500bp) | 1~4bp (Between 100~500bp) | 1~4bp (Between 100~500bp) |
Sensitivity | 5pg/μl | 5pg/μl | 5pg/μl |
Minimum Sample Volume | 1μl (Micro-Vial:C104250) 20μl (standard PCR tube) | 1μl (Micro-Vial:C104250) 20μl (standard PCR tube) | 1μl (Micro-Vial:C104250) 20μl (standard PCR tube) |
Sample Consumption | ≤1pl | ≤1pl | ≤1pl |
Detection | Fluorescence | Fluorescence | Fluorescence |
Light Source | LED | LED | LED |
Separation Voltage | 1-8KV | 1-8KV | 1-8KV |
Connection | Wi-Fi Remote Control | USB | USB |
Power Source | DC 12V (110-240V), 30W | AC100-240V, 30W | AC100-240V, 30W |
Weight | 5.5Kg | 15Kg | 26Kg |
Dimension | 24(L)×21(W)×30(H) | 38(L)×30(W)×40(H) | 54(L)×40(W)×36(H) |
* (100 to 300 sample capacity without gel preparation)
주문정보
제품번호 | 품명 | 규격 | 제조사 | 비고 |
C400100 | Bio-Fragment Analyzer Qsep400 DNA Analyzer, | unit | BiOptic | 의료기기: 체외수신21-474호 동물용의료기기: 제 303-002호 |

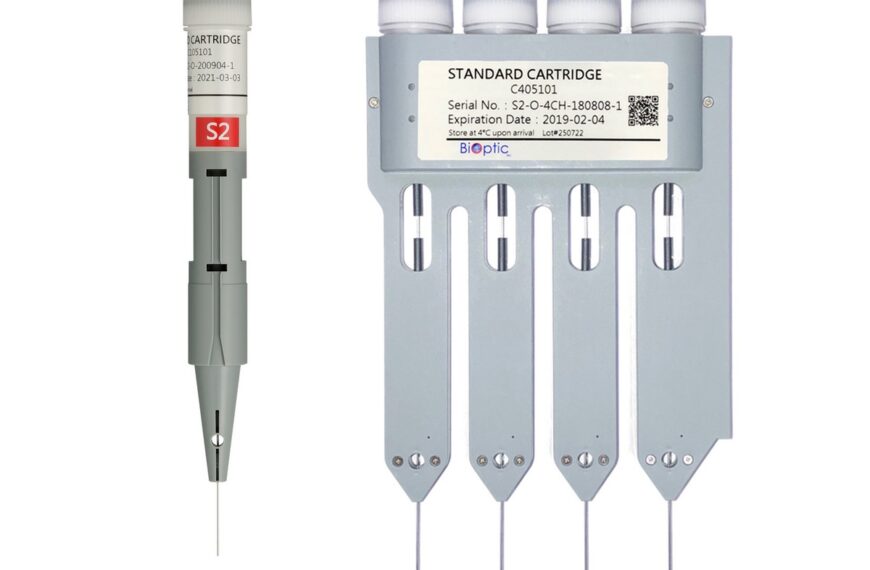

C405101 | S2-Standard Cartridge *1, (800runs/4-Channel Cartridge), with Buffer and Standard Alignment Marker | set | BiOptic | for Qsep400 |
C405102 | S1-High Resolution Cartridge*1,(800runs/4-Channel Cartridge), ‘with Buffer and Standard Alignment Marker |
set | BiOptic | for Qsep400 |
C405106 | S3- Kilobase Cartridge *1 (800runs /4-Channel), with Buffer and Standard Alignment Marker | set | BiOptic | for Qsep400 |
C405103 | F3-Fast Cartridge*1,(1200runs/4-Channel Cartridge), with Buffer and Standard Alignment Marker | set | BiOptic | for Qsep400 |
C405105 | N1-High Sensitivity Cartridge *1 (400runs/4-Channel), with Buffer and Standard Alignment Marker | set | BiOptic | for Qsep400 |
C405110 | R1- RNA Cartridge *1 (400runs /4-Channel), with Buffer and Standard Alignment Marker |
set | BiOptic | for Qsep400 |
C405101-Q | S2-Standard Cartridge *1, (800runs/4-Channel Cartridge), with Buffer and Standard Alignment Marker | set | BiOptic | for Qsep400 |
C405102-Q | S1-High Resolution Cartridge*1,(800runs/4-Channel Cartridge), with Buffer and Standard Alignment Marker | set | BiOptic | for Qsep400 |
Consumable
제품번호 | 품명 | 규격 | 제조사 | 비고 |
C109200 | 15-622bp Size Marker | 500μL/ Vial | BiOptic | |
C109301 | 50-3,000bp Size Marker | 500μL/ Vial | BiOptic | |
C109301-HC | 50bp Size Marker | 250μL/ Vial | BiOptic | |
C109400 | 100bp-10kb Size Marker | 100μL/ 5vial | BiOptic | |
C109700 | 500-23kb Size Marker | 500μL/ Vial | BiOptic |
C109100-500A | 20bp & 1000bp Alignment Marker | 500μL/ Vial | BiOptic | |
C109102-500A | 20bp & 5000bp Alignment Marker | 500μL/ Vial | BiOptic | |
C109109-500A | 20bp & 1500bp Alignment Marker | 500μL/ Vial | BiOptic | |
C109110-500A | 20bp & 15Kbp Alignment Marker | 500μL/ Vial | BiOptic | |
C109120-500A | 5x Lower Alignment Marker | 500μL/ Vial | BiOptic |
Cartridge Selection Guide
Cartridge | Standard (S2) |
High Resolution (S1) |
Kilo Base (S3) |
High Sensitivity (N1) |
High Sensitivity Kilo Base (N3) |
RNA (R1) |
High Sensitivity RNA (NR1) |
Sample size range | 10-15000 bp | 10-15000 bp | 10-23000 bp | 10-15000 bp | 10-50,000 bp | 20~6,000 nt | 20~6,000 nt |
L.O.D. | 0.1 ng/μl* | 0.1 ng/μl* | 0.1 ng/μl* | 5pg/μl* | 20 pg/µL* 1 pg/µL in water* |
5pg/μl | 1ng/µL 0.2ng/µL in water* |
Resolution | 4-10 bp | 1-4 bp | 10-50 bp | ≥ 10 bp | 4~10bp | N/A | N/A |
Analysis Time (per sample) | 2-3min | 2-3min | 5-8min | 3-5min | 9~25 mins 3 mins (below 1 kb) |
5-10min | 5~8 mins |
L.O.D. : 2pg/μl (If diluted in the water) * Determined by the DNA ladder (15-622 DNA size marker: C109200) as a sample.KIT 구성품: Alignment marker, Separation buffer, Dilution buffer, Mineral oil, buffer tray, PCR vial, and dropper. |
Applications
Standard (S2) |
High Resolution (S1) |
Kilo Base (S3) |
High Sensitivity (N1) |
High Sensitivity Kilo Base (N3) |
RNA (R1) |
High Sensitivity RNA(NR1) |
|
PCR product screening | O | O | – | – | – | – | |
RFLP | O | O | – | – | – | – | |
SNP | – | O | – | – | – | – | |
Plasmid purification & Vector cloning analysis |
– | – | O | – | O | – | |
Library & Fragmentation | O | # | – | – | – | – | |
Genomic DNA analysis | @ | – | O | – | O | – | |
High molecular weight Analysis | – | – | O | – | O | – | |
Cell-free DNA detection | – | – | – | O | – | – | |
RNA Analysis | – | – | – | – | – | O | O |
Low concentration sample | – | – | – | O | O | ||
CRISPR QC & Analysis | O | O | – | – | O | O | |
Large size fragment analysis | – | – | O | – | – | – |
#. Higher accuracy, but longer separation time. @. Genomic DNA size below 15kb
Document
