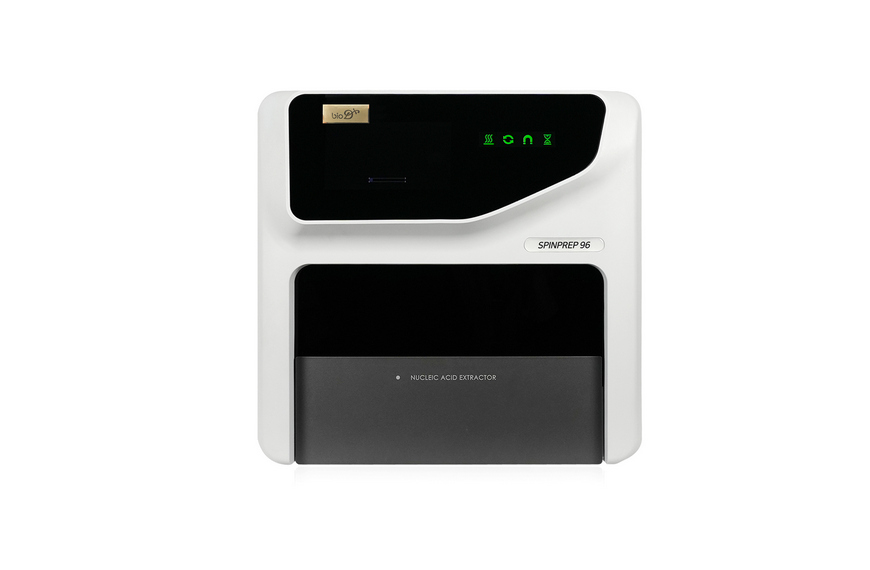

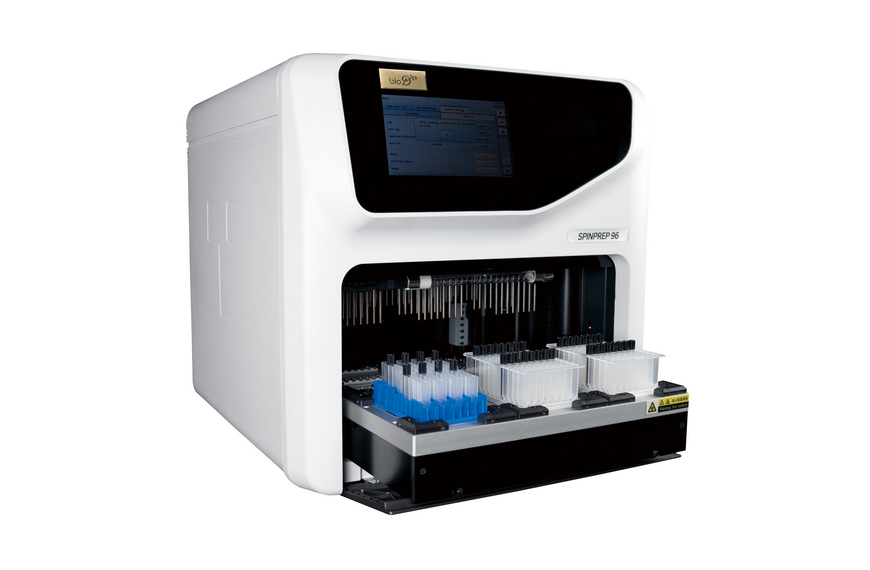

SpinPrep96 Nucleic acid Extractor
제품 소개
Spinprep96 은 동시에 96개의 샘플을 한번에 처리할 수 있는 Rotary Mixing방식의 추출 기술을 적용한 최신 트랜드의 핵산 추출장비입니다.
제품 특징
• High Speed
-전, 후 처리 과정이 필요 없는 간편한 실험 과정 (Lysis에서 elution까지 한번에 진행)
– 최대 96개 Sample 추출을 20여분 이내에 완료 가능
High Extraction Efficiency
-음압 공기 배출 장치의 내장으로 배기가스 위험 제거
-교체 가능한 HEPA Filter 및 오염 방지를 위한 UV Lamp 내장
– Heat block 장착으로 Lysis 및 Elution 시 고수율및 고순도 보장
Easy Control & Flex System
– 7인치 LCD 터치 스크린으로 손쉽게 구동
– 각 시료에 따른 최적화 된 protocol 제공

Magnet bead technology
DNA를 Magnet bead에 binding시켜 Rod로 bead를 각 well에 담긴 buffer에 이동시켜 DNA를 추출/정제하는 방식으로 조작이 간편하고, deep-well plate를 사용하기 때문에 well간 cross-contamination의 위험을 최소화 했습니다.

Heat block
샘플이 Lysis/Elution 이 이루어지는 위치에 온도조절이 가능한 Heat Block을 장착시켜 추출효율을 극대화 했습니다.

순도 높은 핵산 추출
교체 가능한 HEPA Filter 및 오염 방지를 위한 UV Lamp 내장하고 있습니다.

다양한 샘플 추출 시약
시약은 pre-filled 타입으로 제공됩니다. 샘플의 종류에 맞게 각각에 최적화된 프로토콜이 함께 제공되어 안정적으로 좋은 결과를 얻을 수 있습니다.

LED block (별도 판매)
핵산 추출 장비의 작동 정확도를 높이고 핵산 추출 효율을 극대화 할 수 있는 사용자 친화적 액세서리입니다.
제품사양
Nanoprep32 | Spinprep96 | |
Throughputs | 1~32 | 1~96 |
Processing Volume | 30-1000ul | 30~1000μl |
Collection efficiency | >95% | ≥98% |
Extraction Difference: | CV <5% | CV <3% |
Heating Temperature | Lysis heating: RT ~ 120℃ Elution heating: RT ~ 120℃ |
Lysis heating: RT ~ 120℃ Elution heating: RT ~ 120℃ |
Mixing Method | Oscillation | Rotation |
Rotational speed | – | ≤3000rpm |
Reagents | Reagents suitable for the Magnetic particle method | Reagents suitable for the Magnetic particle method |
Operation interface | English | Chinese/English |
Storage capacity | 15 set in unit / 500set in android applications | up to 10,000 protocols in unit |
Protocol management | create / edit / delete | create / edit / delete |
Pollution control | UV light | HEPA filter & UV light |
Computer interface | USB port | USB port |
Network communication | Ethernet(optional) | Ethernet |
Dimension (LWH) | 440 x 435 x 445mm | 490 x 510 x 480mm |
Weight | 31.5kg | 45kg |
주문정보
제품번호 | 품명 | 규격 | 제조사 | 비고 |
SP-096 | SpinPrep Extractor, 96 prep | unit | BioD | 인체용 의료장비: 체외제신21-1084호 동물용 의료장비: 제338-001호 |
P0060 | Single Kits Docking | ea | BioD | Consumables |
P0061 | 96 deep-well plate | ea | BioD | Consumables |
P0063 | Rotary strip Mixing Sleeves, SpinPrep 96 | 20pcs/pk | BioD | Consumables |
P0064 | Magnetic LED Block | unit | BioD | 별도판매 |
P0067 | HEPA Filter | ea | BioD | Replaceable accessory |
– | UV lamp | ea | BioD | Replaceable accessory |
전용 추출 키트
제품번호 | 품명 | 규격 | 제조사 | MSDS | 비고 |
P0069R | HiQ Viral DNA/RNA kit, v.1.0 | Deep well plate, 96T (16testx6plate) | BioD | MSDS | • 동물용 의료기기: 제338-002호 • 인체용 의료기기: 체외제신21-1310호 • 전혈 및 환경 시료에서 Virus의 DNA 혹은 RNA 추출 |
P0070R | Deep well plate, 48T (8testx6plate) | BioD | |||
P0071R | Single 6-tube, 96T (1Tx96pieces) | BioD | |||
P0072R | HiQ Viral DNA/RNA kit, v.2.0 | Deep well plate, 96T (16testx6plate) | BioD | MSDS | • 인체용 의료기기: 체외제신21-1081호 • 동물용 의료기기: 제338-007호 • 유제액 및 swab 시료에서 Covid-19 virus 추출 |
P0073R | Deep well plate, 48T (8testx6plate) | BioD | |||
P0074R | Single 6-tube, 96T (1Tx96pieces) | BioD | |||
P0053R | HiQ Viral DNA/RNA kit, v.3.0 | Deep well plate, 96T (16testx6plate) | BioD | MSDS |
• 인체용 의료기기: 체외제신23-61호 • 동물용 의료기기: 제338-005호 |
P0054R | Deep well plate, 48T (8testx6plate) | BioD | |||
P0055R | Single 6-tube, 96T (1Tx96pieces) | BioD | |||
P0007R | HiQ Whole Blood DNA Kit | Deep well plate, 64T (16testx4plate) | BioD | MSDS | • 동물용 의료기기: 제338-003호 • 인체용 의료기기: 체외제신21-1185호 • 전혈에서 gDNA 추출 |
P0008R | Deep well plate, 32T (8testx4plate) | BioD | |||
P0048R | Single 6-tube, 60T (1Tx60pieces) | BioD | |||
P0010R | HiQ Tissues DNA Kit | Deep well plate, 64T (16testx4plate) | BioD | MSDS | • 동물용 의료기기: 제338-004호 • 인체용 의료기기: 체외제신21-1184호 • 다양한 조직 시료에서 gDNA 추출 |
P0011R | Deep well plate, 32T (8testx4plate) | BioD | |||
P0049R | Single 6-tube, 60T (1Tx60pieces) | BioD | |||
P0013R | HiQ Plant DNA Kit | Deep well plate, 64T (16testx4plate) | BioD | MSDS | • 식물의 잎, 뿌리, 씨앗 시료에서 gDNA 추출 |
P0014R | Deep well plate, 32T (8testx4plate) | BioD | |||
P0050R | Single 6-tube, 60T (1Tx60pieces) | BioD | |||
P0016R | HiQ Food DNA Kit | Deep well plate, 64T (16testx4plate) | BioD | • 어패류, 가공 식품의 시료에서 gDNA 추출 | |
P0017R | Deep well plate, 32T (8testx4plate) | BioD | |||
P0051R | Single 6-tube, 60T (1Tx60pieces) | BioD | |||
P0019R | HiQ Stool DNA/RNA Kit | Deep well plate, 64T (16testx4plate) | BioD | MSDS | • 동물용 의료기기: 제338-006호 • 인체용 의료기기: 체외제신21-1083호 • 분변내의 virus, bacteria의 DNA혹은 RNA 추출 |
P0020R | Deep well plate, 32T (8testx4plate) | BioD | |||
P0052R | Single 6-tube, 60T (1Tx60pieces) | BioD | |||
P0022R | HiQ Bacterial DNA Kit | Deep well plate, 64T (16testx4plate) | BioD | MSDS | • MSDS Lysozyme |
P0024R | Single 6-tube, 20T (1Tx20pieces) | BioD | |||
P0028R | HiQ FFPE DNA Kit | Deep well plate, 64T (16testx4plate) | BioD | ||
P0030R | Single 6-tube, 20T (1Tx20pieces) | BioD | |||
P0031R | HiQ Total Tissue RNA Kit | Deep well plate, 64T (16testx4plate) | BioD | ||
P0032R | Deep well plate, 32T (8testx4plate) | BioD | |||
P0033R | Single 6-tube, 20T (1Tx20pieces) | BioD | |||
P0034R | HiQ Plasmid DNA Kit | Deep well plate, 64T (16testx4plate) | BioD | ||
P0037R | HiQ PCR Purification Kit | Deep well plate, 64T (16testx4plate) | BioD | ||
P0038R | Deep well plate, 32T (8testx4plate) | BioD | |||
P0044R | HiQ Free Circulating DNA Kit | Single 6-tube, 20T (1Tx20pieces) | BioD | ||
P0056R | HiQ Multi-Sample Kit | Deep well plate, 64T (16testx4plate) | BioD | • 전혈, 조직, 모근 등 다양한 시료에서 gDNA 추출 | |
P0057R | Deep well plate, 32T (8testx4plate) | BioD | |||
P0058R | Single 6-tube, 60T (1Tx60pieces) | BioD | |||
P0059R | HiQ Stool DNA/RNA kit, bottle | Each bottle, 100T | BioD | ||
P0065R | HiQ Wastewater Viral DNA/RNA kit | Deep well plate, 96T (16testx6plate) | BioD | ||
P0066R | Deep well plate, 48T (8testx6plate) | BioD |
Document
제품 자료 | BioD_Nucleic_Acid_Extractor_ Catalog_2023V2_Kor.pdf | Upload date: 2023.09.06 |
제품 매뉴얼 |
