NanoPrep32 Nucleic acid Extractor

제품 소개

NanoPrep32 는  동시에 32개까지 샘플을 처리할 수 있으며 샘플 타입에 따라 25~40분만에 run이 완료되는 고속 핵산추출장비입니다.
샘플 lysis부터 elution까지 모두 장비 안에서 이루어지며 작은 부피와 경제적인 가격으로 자동화 장비를 사용하실 수 있습니다.

사용되는 kit는 pre-filled 96 well deep 플레이트 형태로 제공되기 때문에 사용시 샘플과 플레이트와 소모품을 장착하기만 하면 됩니다.
Pre-filled 타입 외에도 사용자가 직접 빈 플레이트에 추출시약을 넣어 사용하는 타입도 선택이 가능하기 때문에 적은 개수의 샘플을 추출할 때 사용자의 편의에 맞게 사용이 가능합니다.

NanoPrep32는 UV 멸균기능이 있어 사용 전/후 멸균상태를 유지할 수 있어 더욱 간편하고 안전한 사용이 가능합니다.

제품 특징

• 최대 32 샘플 처리
• 샘플 종류별로 최적화된 다양한 시약의 공급
• 플레이트 타입의 시약이 제공되므로 수작업으로 시약을 준비하는 과정이 없어 시간 단축
• deep-well 플레이트 타입으로 샘플끼리 분리된 환경에서 추출되기 때문에 샘플간 오염차단
• well간 yield variation이 적어 샘플의 안정적인 확보 가능
• UV lamp로 실험 전/후 장비 내부를 멸균하여 오염 차단
• 각 샘플의 lysis와 elution을 진행하는 위치에 heat block이 있어 추출 효율 최대화
• 기기 내에 내장된 Wi-Fi로 동기화되는 태블릿 PC가 함께 제공되어 사용자가 개인 자리에서도 손쉽게 기기를 제어하고 작동할 수 있음

Magnet bead technology
DNA를 Magnet bead에 binding시켜 Rod로 bead를 각 well에 담긴 buffer에 이동시켜 DNA를 추출/정제하는 방식으로 조작이 간편하고, deep-well plate를 사용하기 때문에 well간 cross-contamination의 위험을 최소화 했습니다. 32개의 샘플을 한 번에 추출할 수 있습니다

Heat block
샘플이 Lysis/Elution 이 이루어지는 위치에 온도조절이 가능한 Heat Block을 장착시켜 추출효율을 극대화 했습니다.

다양한 샘플 추출 시약
시약은 pre-filled 타입으로 제공되며 샘플의 종류에 맞게 각각에 최적화된 프로토콜이 함께 제공되어 안정적으로 좋은 결과를 얻을 수 있습니다.

제품사양

NanoPrep32 SpinPrep96
Throughputs 1~32 1~96
Processing Volume 30-1000ul 30~1000μl
Collection efficiency >95% ≥98%
Extraction Difference: CV <5% CV <3%
Heating Temperature RT ~ 120℃ Lysis heating: RT ~ 120℃
Elution heating: RT ~ 120℃
Mixing Method Oscillation Rotation
Rotational speed ≤3000rpm
Reagents Reagents suitable for the Magnetic particle method Reagents suitable for the Magnetic particle method
Operation interface English Chinese/English
Storage capacity 15 set in unit / 500set in android applications up to 10,000 protocols in unit
Protocol management create / edit / delete create / edit / delete
Pollution control UV light HEPA filter & UV light
Computer interface USB port USB port
Network communication Ethernet(optional) Ethernet
Dimension (LWH) 440 x 435 x 445mm 490 x 510 x 480mm
Weight 31.5kg 45kg

주문정보

​제품번호 품명 규격 제조사 비고
NP-032 NanoPrep Extractor, 32 prep unit BioD

인체용 의료기기: 체외제신21-1085호

P0060 Single Kits Docking ea BioD Consumables
P0061 96 deep-well plate ea BioD Consumables
P0062 Mixing Sleeves, NanoPrep 32 20pcs/pk BioD Consumables
P0064 Magnetic LED Block unit BioD 별도판매

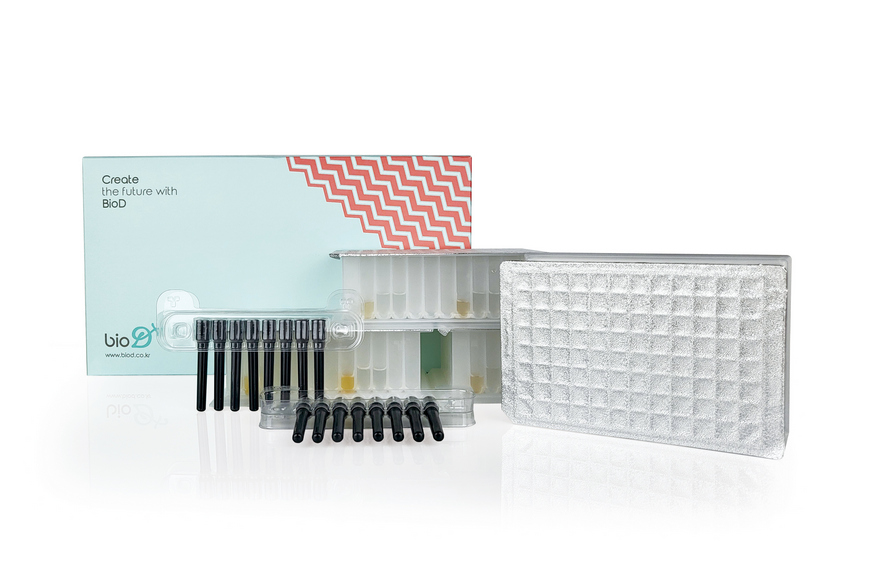

전용 추출 키트

제품번호 품명 규격 제조사 MSDS 비고
P0069N HiQ Viral DNA/RNA kit, v.1.0 Deep well plate, 96T (16testx6plate) BioD MSDS • 동물용 의료기기: 제338-002호
• 인체용 의료기기: 체외제신21-1310호
• 전혈 및 환경 시료에서 Virus의 DNA 혹은 RNA 추출
P0070N Deep well plate, 48T (8testx6plate) BioD
P0071N Single 6-tube, 96T (1Tx96pieces) BioD
P0072N HiQ Viral DNA/RNA kit, v.2.0 Deep well plate, 96T (16testx6plate) BioD MSDS • 인체용 의료기기: 체외제신21-1081호
• 동물용 의료기기: 제338-007호
• 유제액 및 swab 시료에서 Covid-19 virus 추출
P0073N Deep well plate, 48T (8testx6plate) BioD
P0074N Single 6-tube, 96T (1Tx96pieces) BioD
P0053N HiQ Viral DNA/RNA kit, v.3.0 Deep well plate, 96T (16testx6plate) BioD MSDS
• 인체용 의료기기: 체외제신23-61호
•
동물용 의료기기: 제338-005호
P0054N Deep well plate, 48T (8testx6plate) BioD
P0055N Single 6-tube, 96T (1Tx96pieces) BioD
P0007N HiQ Whole Blood DNA Kit Deep well plate, 64T (16testx4plate) BioD MSDS • 동물용 의료기기: 제338-003호
• 인체용 의료기기: 체외제신21-1185호
• 전혈에서 gDNA 추출
P0008N Deep well plate, 32T (8testx4plate) BioD
P0048N Single 6-tube, 60T (1Tx60pieces) BioD
P0010N HiQ Tissues DNA Kit Deep well plate, 64T (16testx4plate) BioD MSDS • 동물용 의료기기: 제338-004호
• 인체용 의료기기: 체외제신21-1184호
• 다양한 조직 시료에서 gDNA 추출
P0011N Deep well plate, 32T (8testx4plate) BioD
P0049N Single 6-tube, 60T (1Tx60pieces) BioD
P0013N HiQ Plant DNA Kit Deep well plate, 64T (16testx4plate) BioD MSDS • 식물의 잎, 뿌리, 씨앗 시료에서 gDNA 추출
P0014N Deep well plate, 32T (8testx4plate) BioD
P0050N Single 6-tube, 60T (1Tx60pieces) BioD
P0016N HiQ Food DNA Kit Deep well plate, 64T (16testx4plate) BioD • 어패류, 가공 식품의 시료에서 gDNA 추출
P0017N Deep well plate, 32T (8testx4plate) BioD
P0051N Single 6-tube, 60T (1Tx60pieces) BioD
P0019N HiQ Stool DNA/RNA Kit Deep well plate, 64T (16testx4plate) BioD MSDS • 동물용 의료기기: 제338-006호
• 인체용 의료기기: 체외제신21-1083호
• 분변내의 virus, bacteria의 DNA혹은 RNA 추출
P0020N Deep well plate, 32T (8testx4plate) BioD
P0052N Single 6-tube, 60T (1Tx60pieces) BioD
P0022N HiQ Bacterial DNA Kit Deep well plate, 64T (16testx4plate) BioD MSDS • MSDS Lysozyme
P0024N Single 6-tube, 20T (1Tx20pieces) BioD
P0028N HiQ FFPE DNA Kit Deep well plate, 64T (16testx4plate) BioD
P0030N Single 6-tube, 20T (1Tx20pieces) BioD
P0031N HiQ Total Tissue RNA Kit Deep well plate, 64T (16testx4plate) BioD
P0032N Deep well plate, 32T (8testx4plate) BioD
P0033N Single 6-tube, 20T (1Tx20pieces) BioD
P0034N HiQ Plasmid DNA Kit Deep well plate, 64T (16testx4plate) BioD
P0037N HiQ PCR Purification Kit Deep well plate, 64T (16testx4plate) BioD
P0038N Deep well plate, 32T (8testx4plate) BioD
P0044N HiQ Free Circulating DNA Kit Single 6-tube, 20T (1Tx20pieces) BioD
P0056N HiQ Multi-Sample Kit Deep well plate, 64T (16testx4plate) BioD • 전혈, 조직, 모근 등 다양한 시료에서 gDNA 추출
P0057N Deep well plate, 32T (8testx4plate) BioD
P0058N Single 6-tube, 60T (1Tx60pieces) BioD
P0059N HiQ Stool DNA/RNA kit, bottle Each bottle, 100T BioD
P0065N HiQ Wastewater Viral DNA/RNA kit Deep well plate, 96T (16testx6plate) BioD
P0066N Deep well plate, 48T (8testx6plate) BioD
