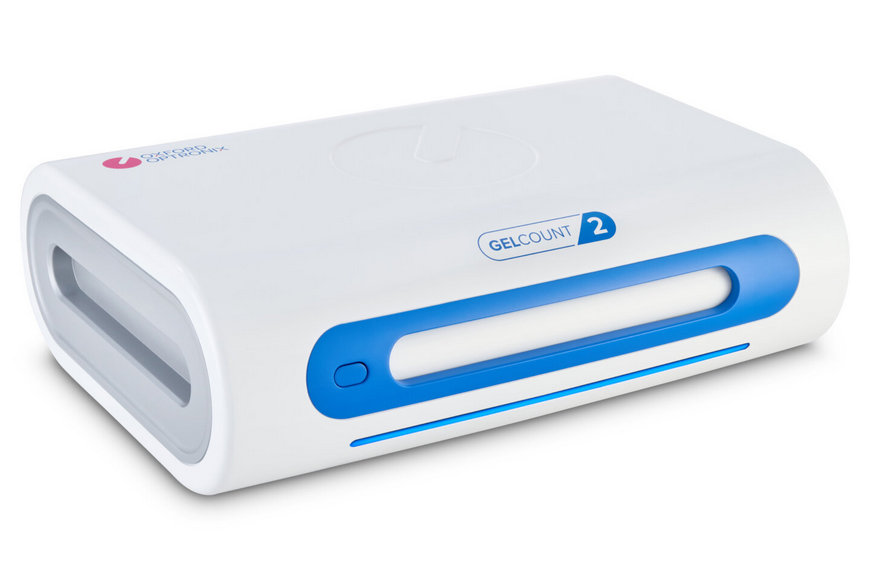

GelCount

제품 소개

GelCount는 3-D 배지에서 형성된 colony를 count 할 수 있는 bench top system입니다.
Stained/Unstained, adherent/non-adherent colony를 모두 counting할 수 있습니다.
방사능, 화학약물 등이 cell viability에 미치는 영향을 측정하기 위한 장비로, 재현성 있고 객관적인 데이터의 획득이 가능합니다.

실험대위에 올려놓고 사용하는 컴팩트한 사이즈의 장비로, 다양한 3-D 배지에서 생장하는 colony를 counting 합니다.
이 때, cell의 염색여부, 흡착 여부와 관계없이 counting이 가능하다는 장점이 있습니다.

Gelcount는 clonogenic, cell survival, tumor cloning, colony-forming assay등 다양한 범위에서의 colony counting이 가능합니다.
이를 통해 colony counting 시간을 획기적으로 절약할 수 있고, particle등으로 인해 발생하는 background로부터의 확실한 구별을 통해 human error를 제거할 수 있습니다.

데이터는 Excel과 호환이 가능하고 다양한 raw data가 제공되기 때문에 분석이 용이합니다.

제품 특징

•Overlapping colony, real colony와 cell debris와의 명확한 구별이 가능
•고해상도 이미지 (직경 30µm 구별 가능)
•다양한 타입의 3-D 배지 (soft agar, methylcellulose, traditional etc.)에서 생장하는 colony (stained/unstained)의 counting 가능
•한 번에 4개의 multi-well culture plate, 한 tray 당 24개의 petri dish까지 처리 가능
•‘Excel’로 output 한 데이터는 colony 직경, 면적, 밀도, 거리 등 다양한 raw data의 제공 가능

Multi-well plate는 simple zoom과 panning control을 통해 모든 구역을 한 well 씩 image 확인이 가능하며 close-up을 하여도 high resolution으로 colony detection의 객관적인 image를 얻을 수 있습니다.  이때 계수된 colony와 평균지름과 같은 통계자료는 왼쪽에 요약되어 보여집니다.

Colony count 뿐만 아니라 colony size로 통계 분포 집합을 계산하여 histogram format을 통해 보여지게 됩니다. Histogram date는 bitmap 또는 Excel로 전송이 가능합니다.

‘CHARM Optimizer’는 다양한 감도와 크기에 기초한 colony를 결정하거나 배제할 수 있습니다. 이러한 기능은 사용자 정의 설정을 객관적이고 일관성 있게 적용하여 탁월하게 colony 비례 및 재현성을 달성할 수 있습니다.

Gel count data 내보내기 option은 광범위하게 colony count와 평균 colony 통계뿐만 아니라 디지털이미지와 개별 colony의 raw data 전송이 가능합니다.

제품사양

PHYSICAL
Imaging method High-resolution 16-bit greyscale CCD line imager, visible light trans-illumination
Imaging resolution 300 dpi – 2,400 dpi, user selectable
Depth of field 0~5mm effective, above well base
Sample loading method Removable loading tray, latching into a software-controlled motorized drawer
Plastic-ware supported Multi-well plates:
6, 12, 24, 48 and 96-well plates with/without lids;
35, 50/60 and 100mm Petri dishes with/without lids;
selected T25 flasks.
Loading tray capacity Up to 4 multi-well plates; up to 24 Petri dishes; up to 8 T25 flasks
PC interface USB 2.0 (x2)
Dimensions 155mm x 560mm x 450mm (H x W x D)
Weight 20 kg
Power requirements 100~240V, ~1.5A, 50-60 Hz; 2 x T1.6A fuse
Storage temperature 10~40°C
Operating temperature 15~30°C
Operating humidity 0~70% (non condensing)
PERFORMANCE
Min. resolvable colony diameter Approx. 30 µm (at 2,400 dpi image resolution)
Typical acquisition time 12 minutes (four 6-well plates at 1,200 dpi)
Colony detection CHARM II™ (Compact Hough and Radial Map) image processing algorithm, proprietary to Oxford Optronix Ltd., dedicated to colony detection and size characterization.
Colony types supported Adherent: stained (methyl blue, crystal violet, or equivalent).
Non-adherent in soft agar, methylcellulose or other semi-solid media: unstained or stained (MTT or equivalent).
Counting variability < 5% for repeated analysis of the same sample
Numerical data output Automated exportation to Excel® of colony counts, mean colony diameter, area, volume and other ‘statistics’ per well/dish.
Optional ‘csv’ output of per-colony data and/or statistics histograms.
Image output Per well/dish or compound bitmap images for general-purpose importation/printing.
Per well/dish raw images for ‘off-line’ image analysis and/or archiving.

주문정보

제품번호 품명 규격 제조사 비고
GELCOUNT Colony counter for adherent or
non-adherent (‘soft agar’) colony-forming assays
set Oxford Optronix Included 4-place multi-well plate tray, software
Accessories
PLATE_TRAY 4-place tray for multi-well plates unit
T25_TRAY_SSTD 8-place tray for Sarstedt™ T25 flasks
(model 83.1810)
unit
T25_TRAY_FLCN 6-place tray for Falcon® T25 flasks
(model 353082)
unit
PETRI_TRAY_35 24-place tray for 35 mm Petri dishes
(Nunc™, Greiner™)
unit
PETRI_TRAY_35_F 24-place tray for 35 mm Petri dishes (Falcon™) unit
PETRI_TRAY_50 12-place tray for 50 mm Petri dishes unit
PETRI_TRAY_100 4-place tray for 100 mm Petri dishes unit

지원 트레이

Select recent journal articles

Eunyoung Tak Minhee Kim Youngra Cho Sueun Choi Jihun Kim Buhm Han Hyung-Don Kim Chloe Soo‑Hyun Jang Jeong Eun Kim Yong Sang Hong Sun Young Kim Tae Won Kim (2022). Expression of neurofibromin 1 in colorectal cancer and cetuximab resistance. ONCOLOGY REPORTS 47: 15, 2022

Hannafon BN, Cai A, Calloway CL, Xu YF, Zhang R, Fung KM and Ding WQ (2019). miR-23b and miR-27b are oncogenic microRNAs in breast cancer: evidence from a CRISPR/Cas9 deletion study. BMC Cancer 19(1), 642

Giordano A, Liu Y, Armeson K, Park Y, Ridinger M, Erlander M, Reuben J, Britten C, Kappler C, Yeh E and Ethier S (2019). Polo-like kinase 1 (Plk1) inhibition synergizes with taxanes in triple-negative breast cancer. PLoS One 14(11), e0224420

Hale SJ, Jimenez-Pascual A, Kordowski A, Pugh J, Rao S, Silver DJ, Alban T, Watson DB, Chen R, McIntyre TM, Colombo G, Taraboletti G, Holmberg KO, Forsberg-Nilsson K, Lathia JD and Siebzehnrubl FA (2018). ADAMDEC1 maintains a novel growth factor signaling loop in cancer stem cells. doi: http://dx.doi.org/10.1101/5315…

Sun L et al. (2019). miR-302a Inhibits Metastasis and Cetuximab Resistance in Colorectal Cancer by Targeting NFIB and CD44. Theranostics 9(26), 8409-8425

Kessel D (2019). Pathways to Paraptosis After ER Photodamage in OVCAR-5 Cells. Photochem Photobiol. 2019 Mar 29. doi: 10.1111/php.13103. [Epub ahead of print]

Wienholz F, Zhou D, Turkyilmaz Y, Schwertman P, Tresini M, Pines A, van Toorn M, Bezstarosti K, Demmers JAA and Marteijn JA (2019). FACT subunit Spt16 controls UVSSA recruitment to lesion-stalled RNA Pol II and stimulates TC-NER. Nucleic Acids Res. 2019 Feb 4. doi: 10.1093/nar/gkz055. [Epub ahead of print]

Ha JR, Ahn R, Smith HW, Sabourin V, H?bert S, Cepeda Cañedo E, Im YK, Kleinman C, Muller WJ and Ursini-Siegel J (2018). Integration of distinct ShcA signaling complexes promotes breast tumor growth and tyrosine kinase inhibitor resistance. Mol Cancer Res 16(5), 894-908
