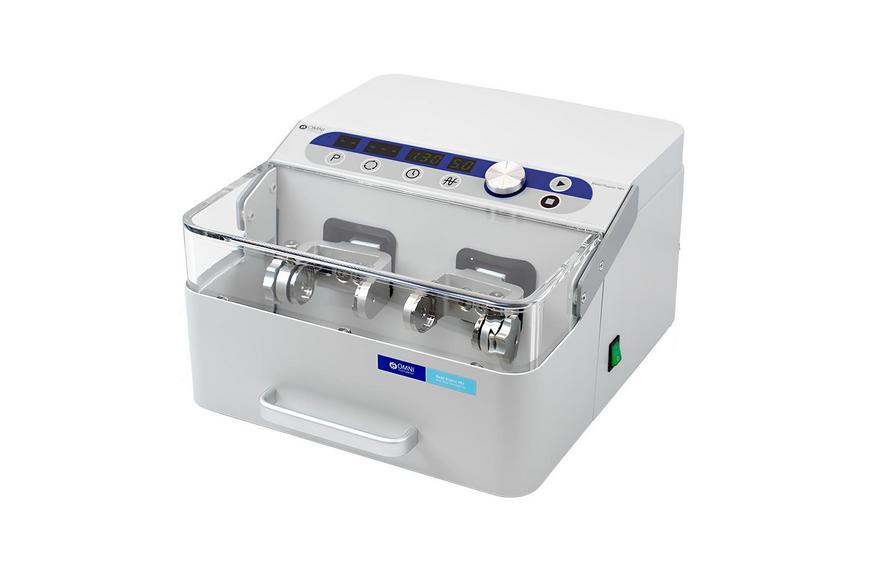

Bead Ruptor 96

제품 소개

Bead Ruptor는 단단한 조직의 샘플을 파쇄하여 downstream 실험에 적합한 강도로 균질화 하기 위한 샘플 전처리용 장치입니다.

Ideal for:

• High-throughput bead beating in 2 x 2 mL deep well plates, 4 x 1 mL well plates, or 6 x standard well plates with a max height of 49.25 mm
• Dry grinding of powders, ceramics, bones, feed materials, plastics, paper products, textiles, and ores
• Cryogenic milling of tough materials including plastics, plants, tissues, and bone
• Cryogenic milling of cannabis edibles, gummy candies, suckers, or sticky materials
• Rapid DNA, RNA, or protein extraction from a wide range of materials

*호모게나이저, 호모지나이저, 균질기, 파쇄기, 균질화기기,  샘플균질기, 시료균질기, 비드럽터, 소니케이터

제품 특징

• Multiple sample processing mode:
-최대 50mL 용량의 밀폐형 stainless steel jar 사용
-질긴 재료 또는 열에 민감한 샘플의 파쇄를 위한 Cryogenic milling
-표준 SBS 형식 1mL, 2mL 및 최대 높이가 49.25mm인 표준 well plate 사용
• 높은 처리량: 사이클당 최대 384개 샘플 분리
• 디지털 제어로 재현성 보장
• 높은impact forces 로 거친 샘플도 쉽게 파쇄 보장
• 30Hz frequency 주파수로 빠른 샘플 처리 보장
• 건식, 습식 또는 극저온 처리용 액세서리

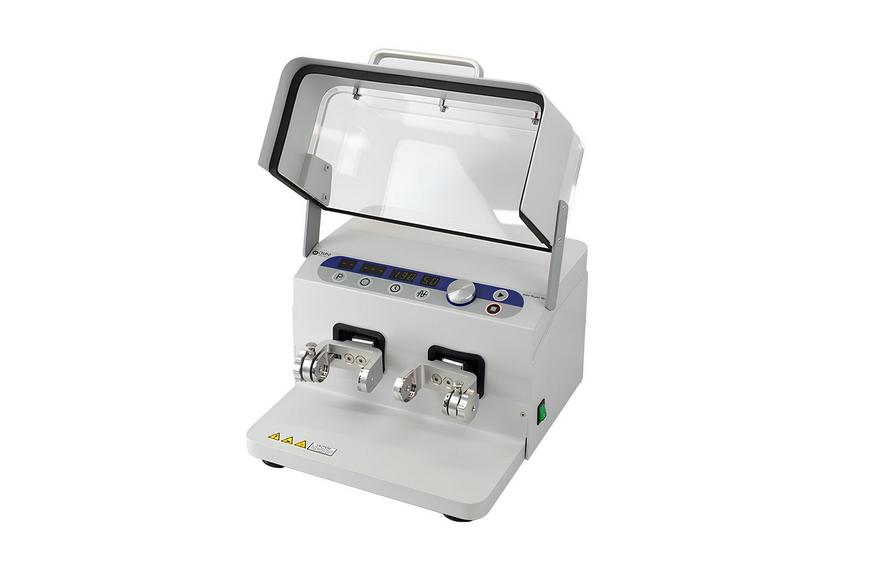

• Integrated safety lid
• 습식, 건식 또는 극저온 밀링을 위한 well plate adaptors, tube holders and sealed jars를 포함한 다양한 액세서리

제품사양

Bead Ruptor 96 Bead Ruptor Elite Bead Ruptor 12 Bead Ruptor 4
Maximum Sample Capacity 384 48 16 4
Tube Capability 0.5, 1.5, 2 ml 0.5, 1.5, 2, 7, 15, 30, 50 ml 0.5, 1.5, 2, 7 ml 0.5, 1.5, 2, 7 ml
Well Plates O X X X
Speed Control 3 – 30 Hz 0.8 – 8 ms 0.8 – 6 ms 1 – 5 ms
Run Time 5sec – 99min 1sec – 9.59min 1sec – 9.59min 1sec – 5min
Processing Range 25 µl – 50 ml 25 µl – 50 ml 25 µl – 7 ml 25 µl – 7 ml
Savable Protocols X O O X
Weight 42kg 30kg 30kg 7.5kg
Dimensions(cm) W: 38.5, D: 42.0, H: 24 W: 38.1, D: 43.2, H: 33.0 W:38.1, D:43.2, H:33.0 W:21.5, D:25.4, H:29.2

주문정보

제품번호 품명 규격 제조사 Q’ty
27-0002 Bead Ruptor 96 Unit Omni Inc. Body only
27-101 Bead Ruptor 96 Well Plate Adapters
(Each Adapter holds 1 x 2 mL Deep Well, 2 x 1 mL or 3 Standard SBS Format Well Plates)
set Omni Inc. 2
27-106 Microtube or Screw Cap Tube Holders
(Each Holder accommodates 48 x 1.5 mL or 48 x 2 mL screw-cap tubes)
set Omni Inc. 2
27-004 25mL Milling Jars and O-Rings set Omni Inc. 2
27-006 50mL Milling Jars and O-Rings set Omni Inc. 2
27-203 10mm Milling Balls set Omni Inc. 10
27-206 25mm Milling Balls set Omni Inc. 5
27-6005 2mL Deep Well Plates Pre-Filled with 5 mm Stainless Steel Beads set Omni Inc. 5
27-6006 2mL Deep Well Plates Pre-Filled with 0.1 mm Ceramic Beads set Omni Inc. 2
27-6007 2mL Deep Well Plates Pre-Filled with 0.1 mm Ceramic Beads set Omni Inc. 10
27-6009 2mL Deep Well Plates Pre-Filled with 1.4 mm Ceramic Beads set Omni Inc. 10
27-6011 2mL Deep Well Plates Pre-Filled with 1.4 mm Ceramic Beads set Omni Inc. 2
27-520 96 Deep Well Plates set Omni Inc. 10
27-530 Sealing Mats for 2 mL 96 Deep Well Plates ea Omni Inc. 1
27-107 96-Well 2D Barcoded Storage Tube Adapter for Micronic and FluidX Tubes set Omni Inc. 2
27-108 96-Well 2D Barcoded Storage Tube Adapter for Matrix Tubes set Omni Inc. 2
27-1003 50mL Tube Holders set Omni Inc. 2
27-7005 5mm Stainless Steel Beads Bulk, 325 g ea Omni Inc. 1
19-6001 2mL Stainless Steel Lysing/Grinding Cryo Tube set Omni Inc. 2

악세서리

Carriage Name Order No. No. of Set Description
96 well plate attachment 27-101 2 2 x 2 mL deep well plate
4 x 1 mL well plate
6 x standard well plate
Microtube or Screw cap tube holder 27-106 2 48 x 1.5 ml or 48 x 2 ml screw-cap tubes
50mL Tube Holders 27-1003 2 Tube Holder set (Left and Right)
25 mL milling jars 27-004 2 2 x 25 mL milling jars
4 x O-rings
2 x milling wrench
50 mL milling jars 27-006 2 2 x 50 mL milling jars
4 x O-rings
2 x milling wrench
10 mm milling balls 27-203 10 10 mm milling balls (10)
25 mm milling balls 27-206 5 25 mm milling balls (5)
5mm Stainless Steel Bead Media 27-7005 1 5 mm Stainless Steel Beads pack of 500 g
2mL Deep Well Plates Pre-Filled with 5 mm Stainless Steel Beads 27-6005 5 Nuclease and Inhibitor Free
2mL Deep Well Plates Pre-Filled with 0.1 mm Ceramic Beads 27-6006 2 Nuclease and Inhibitor Free
2mL Deep Well Plates Pre-Filled with 0.1 mm Ceramic Beads 27-6007 10 Nuclease and Inhibitor Free
2mL Deep Well Plates Pre-Filled with 1.4 mm Ceramic Beads 27-6009 10 Nuclease and Inhibitor Free
2mL Deep Well Plates Pre-Filled with 1.4 mm Ceramic Beads 27-6011 2 Nuclease and Inhibitor Free
96 Deep Well Plates 27-520 10 5 per unit, 10 units per case
Sealing Mats for 2 mL 96 Deep Well Plates 27-530 10 10 per unit, 5 units per case
96-Well 2D Barcoded Storage Tube Adapter for Micronic and FluidX Tubes 27-107 2 • Micronic MP32120 with high profile cap
• FluidX 68-1000-00 with septum style cap
• Micronic MP52345 with septum style cap
• FluidX 66-52345 with septum style cap
96-Well 2D Barcoded Storage Tube Adapter for Matrix Tubes 27-108 2 • Micronic MP32120 with low profile and septum style cap
• FluidX 68-1000-00 with septum style cap
• Thermo Fisher Scientific Matrix 3790 with septum cap
2mL Stainless Steel Lysing/Grinding Cryo Tube 19-6001 1 2 * 2 mL Stainless tubes
2 * Stainless Grinding slugs
2 * spare Tube Gaskets

Document

제품자료 Omni homogenizer-2022R.pdf
Omni_Bead ruptor 96-web.pdf
Upload date: 2022.03.24
제품매뉴얼 BR96 Manual-2021.pdf Upload date: 2021.11.10
